TURBO ARROW PARTS
Updated September 8, 2011
PRICES REDUCED
The following parts were originally part of a 1979 Piper Turbo Arrow
project aircraft. The EXHAUST is being sold as a
package. Everything is hand matched to fine detail for fit and ultimate sealing. These are first class, new,
rebuilt or like new OEM condition as noted for each item's caption and photos
below. Please
review the summary list below and feel free to contact Michael or Steve at
954-978-2171 with any questions, or e-mail here.
|
ITEM |
PART NO. |
PRICE |
|
COMPLETE EXHAUST w/OEM Heater Shield & All Misc. Hardware
(Excellent) |
PACKAGE PRICE |
$8,500 |
| Includes:
Knisley Y-Pipe (New) (STC Removed Dividing Plate that often fails) |
|
" |
| Includes:
Merlyn Black Magic Waste-gate & Bypass (Refreshed, unused, w/STC) |
|
" |
| Includes:
ATC
Approved Turbo (Never Used w/Full Warranty) |
|
" |
|
Includes: Turbo Clamps (2) (New) |
2177-300 |
" |
|
Includes: Turbo Blanket (New) |
|
" |
|
Includes: Tube Assembly (Check Valve to Turbo) (Excellent) |
642697 |
" |
|
Includes:
Hose, Turbo Scavenge, Pump (New) |
635218S6S15.00 |
" |
|
|
|
$8,500 |
|
ADDITIONAL ENGINE PARTS: |
|
HALF $ |
|
Tube, Air
Induction (Elbow from inlet to Filter Air Box) (Excel) |
35706-09 |
$35 |
|
Intake
Filter Box Bottom (Excellent) w/FILTER |
35706-05 |
$500 |
|
AIRFRAME PARTS: |
|
|
|
Arrow/Cherokee Locking Fuel Caps (Excellent) ($1,750 from Piper) |
39830-802 |
$850 |
|
|
|
(OBO) |
|
WE WILL MATCH OR BEAT ANY QUOTE.
CALL BEFORE YOU BUY!
954-978-2171
|
|
|
 |

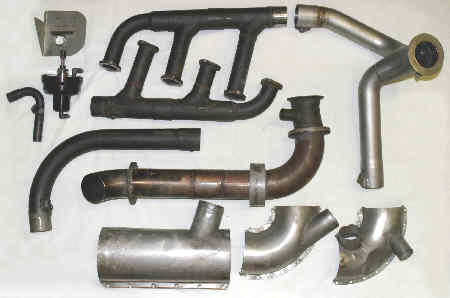

PIPER TURBO ARROW
COMPLETE
EXHAUST PACKAGE
(Used as noted below.)
$8,700
INCLUDES:
ATC Turbocharger &
Hardware (not shown here); please see below.
|
 |
PIPER TURBO ARROW
TAILPIPE & HEATER SHROUD
(Used)
Excellent condition, wall thickness, welds and match ground flanges.
Approximately 610 hours.
INCLUDED with Exhaust Package.
Will Separate for $2,500. |
 |
PIPER TURBO ARROW
CYLINDER EXHAUST
DOWN-TUBES
(Used)
Excellent condition, wall thickness, welds and match ground flanges.
Approximately 610 hours.
INCLUDED with Exhaust Package.
Will Separate for $800
(Pair). |
 |
PIPER TURBO ARROW
MERLYN BLACK MAGIC
AUTOMATIC WASTE GATE
Fully gone through by Merlyn, like NEW and never run since.
INCLUDED with Exhaust Package.
Will Separate for $1,900. |
 |
PIPER TURBO ARROW
TURBO BYPASS
FOR MERLYN
Fully checked by Merlyn, like NEW and never run since.
INCLUDED with Exhaust Package.
Will Separate for $300. |
 |

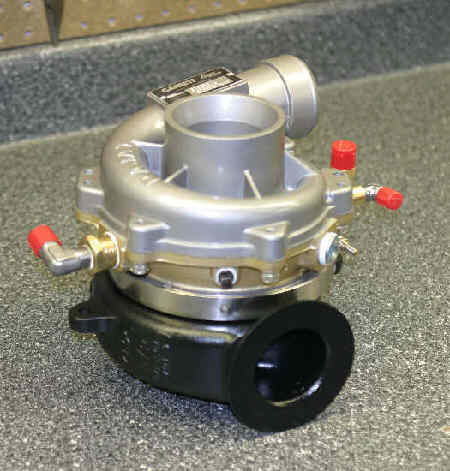

PIPER TURBO ARROW
ATC GARRETT TURBO
COMPLETE
W/ FULL
WARRANTY
This is the exact unit, never run and still has full 18 month warranty.
INCLUDED with Exhaust Package.
Will Separate for $2,700. |
 |

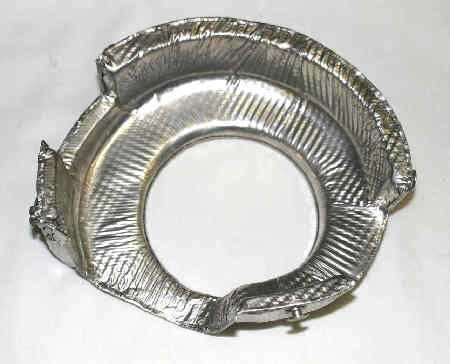

PIPER TURBO ARROW
TURBO BLANKET
(NEW)
INCLUDED with Exhaust Package.
Will Separate for $400.
|
 |

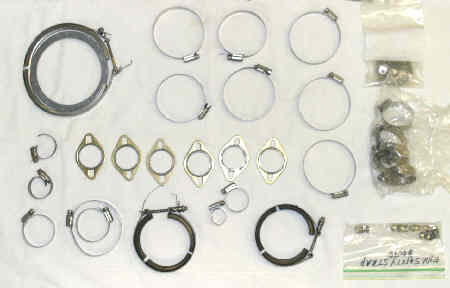

PIPER TURBO ARROW
EXHAUST SYSTEM
CLAMPS, GASKETS &
HARDWARE
INCLUDED with Exhaust Package.
Will Separate for $300.
|
 |

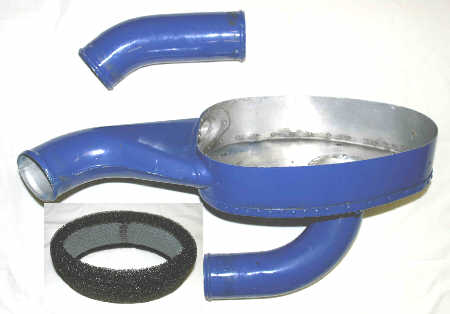

PIPER TURBO ARROW
INTAKE FILTER HOUSING
"Ham Can" &
Filter
w/ INTAKE INLET
CONNECTION TUBE
(Will Separate)
$500
PRICED WITH FILTER
(INSET) |
 |

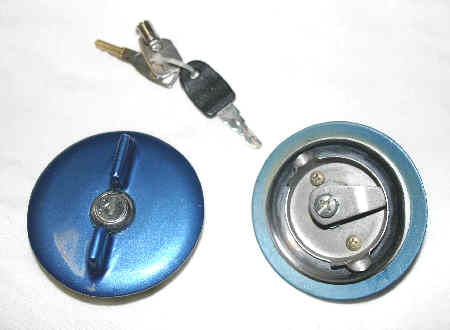

ORIGINAL PIPER FACTORY
LOCKING FUEL CAPS
(Arrow & All Cherokees)
(Painted as
shown; LIKE NEW)
$850
FBO
PRICE has been from $700 to $1,700, and in all cases has a THREE MONTH or
more LEAD TIME, Maybe.
THIS IS THE ONLY SET ON THE PLANET AT THIS
TIME!
The ONLY LEGAL locking fuel caps you can have on your Piper.
Added peace of
mind in today's mischievous world when parking your Piper overnight on
a strange ramp!
|
