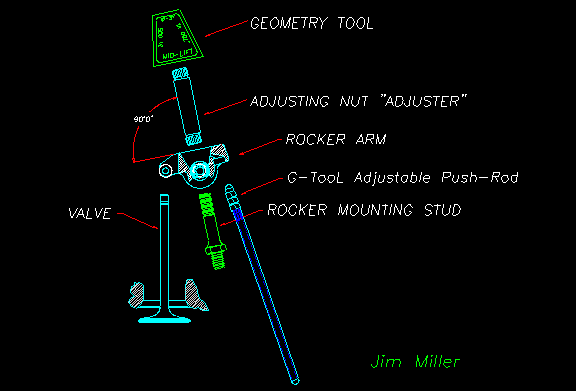

The MILLER G-TooL™
is shown here in exploded view with all the relevant components. The G-TooL has
THREE sides which are used for a THREE STEP PROCESS. The first TWO Steps
establish an exact pushrod length for two valve lifts: .500" and 700". From these
two pushrod measurements that you record, a difference between them creates
a FORMULA. From this Formula a third setting of your pushrod length is used
that is SPECIFIC to only YOUR Valve Lift. The THIRD Step uses the G-TooL's BOTTOM "MID-LIFT"
Side (shown above) to CONFIRM your accuracy, and that of the stud in your
cylinder head; since the accuracy of your installation depends on the rocker
mounting stud being installed accurately to FACTORY specifications.
NOTE: A similar Patent Pending G-TooL will
soon be released for STAND (shaft) SYSTEMS.
